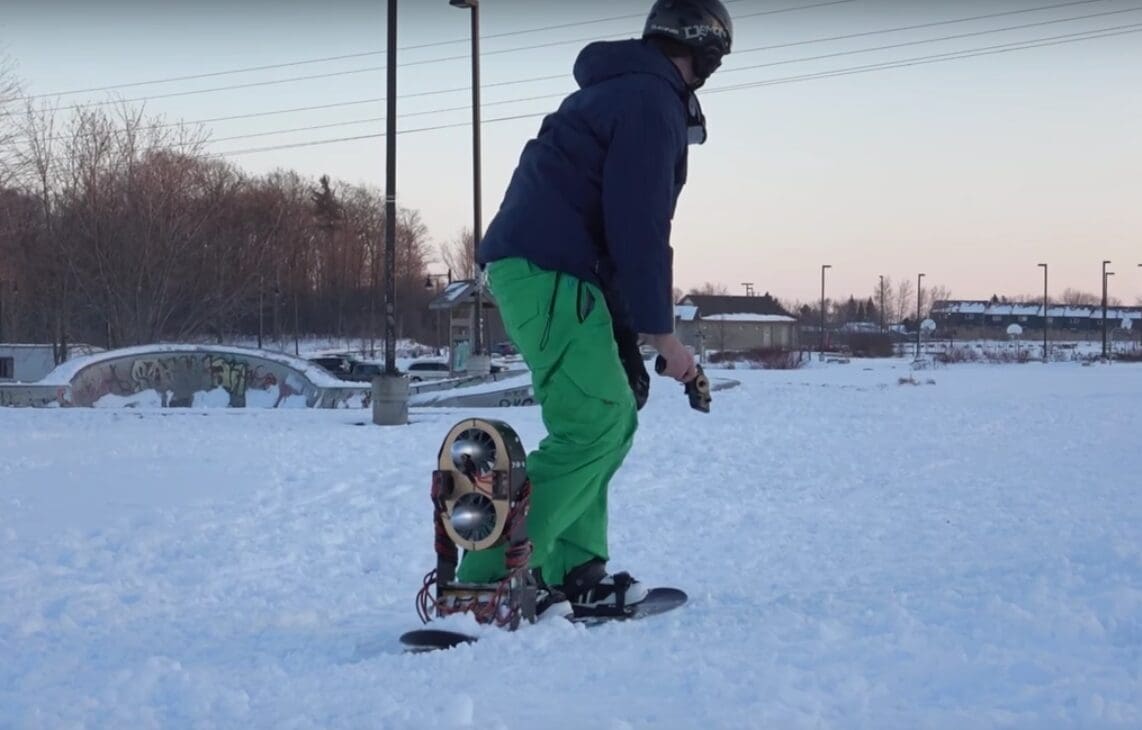

VIDEO: Homemade 21HP Jet Powered Snowboard (Complete Parts List)

A bit clunky but not bad for a little DIY project. Check out the complete list of parts construction overview below:

Building steps:

1. We got 120mm EDFs, Batteries, ESCs, and a Remote Control from Hobby King.

2. We designed and printed an EDF mount on our Lulz bot 3d printer. We used ABS+ at 20% infill. Everything was printed on our LulzBot Taz 6 3d printer available on amazon.

3. Strainers from the dollar store were used as intake guards in front of the EDFs.

4. We cut, bent and welded together a steel frame to house the EDFs in and attach to the snowboard.

5. 8 lipo batteries (6s 6400mah) were mounted in the steel frame and wired to the ESCs.

6. The ESCs were run in parallel from the receiver.

7. The system was not working well so we waxed the board and then it worked great!
